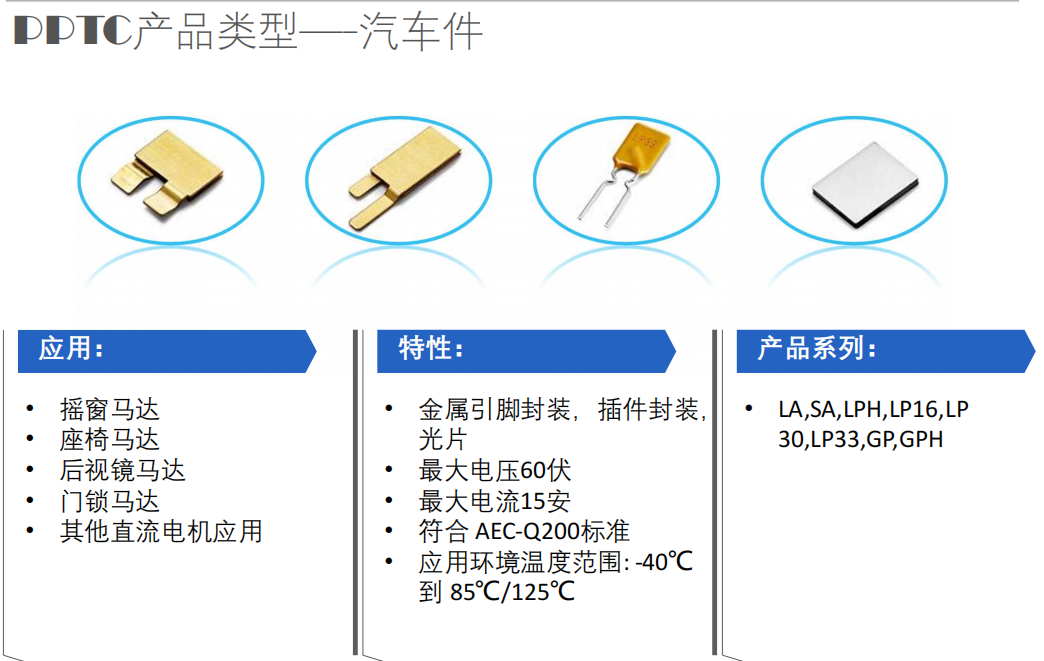

PPTC特點: 電阻低   過流保護  過溫度保護  可重復使用

Features：Provide dual protection for over-current & over-temperature generated after the motor stalling,Protection lifetime is more than 2000 times,Rapidly cool the motor after stalling protection,Protection time can be adjusted and set according to the customers’ requirements,Configuration and dimension can be customized according to the allowed motor inner space,No electromagnetic noise,Outstanding anti-vibration ability,Operation temperature: -40℃～85℃/125℃production.

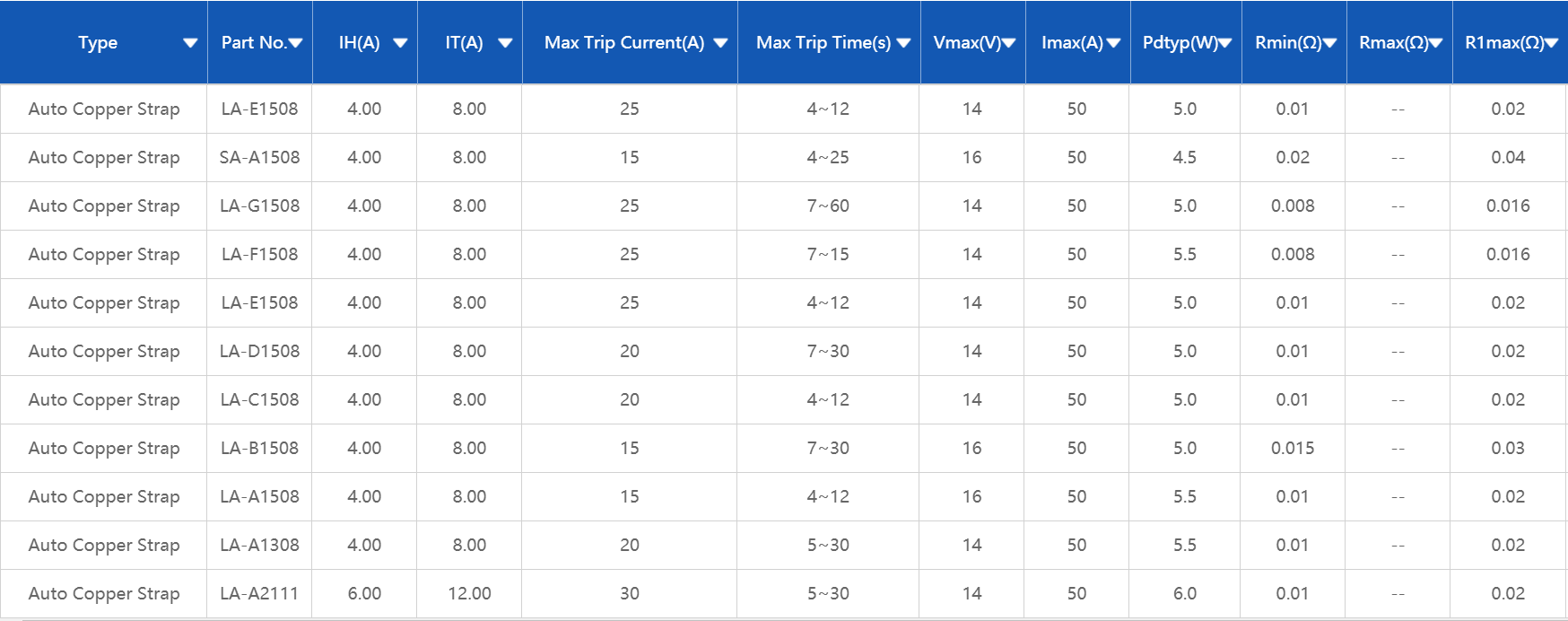

IH=Hold current: maximum current at which the device will not trip at 25℃ still air.

IT=Trip current: minimum current at which the device will always trip at 25℃ still air.

Imax=Maximum fault current device can withstand without damage at rated voltage.

Max Time-to-trip=Maximum time to trip(s) at assigned current.

Pd max=Maximum power dissipation: maximum power dissipated by the device when in state air environment.

Rmin=Minimum device resistance at 25℃ prior to tripping.

Rmax=Maximum device resistance at 25℃ prior to tripping.

R1max=Maximum device resistance at 25℃, of device one hour after being tripped the first time.

特點：對電機熄火后產生的過電流和過溫提供雙重保護，保護壽命超過2000次，熄火保護后快速冷卻電機，保護時間可根據客戶要求進行調整和設置，配置和尺寸可根據允許的電機內部空間定制，無電磁噪音，抗振能力強，工作溫度：-40℃～85℃/125℃生產。

IH=保持電流：在25℃靜止空氣中設備不會跳閘的最大電流。

IT=跳閘電流：裝置在25℃靜止空氣中始終跳閘的最小電流。

Imax=設備在額定電壓下能夠承受的最大故障電流，且不會造成損壞。

最大跳閘時間=指定電流下的最大跳閘時間。

Pd max=最大功耗：設備在空氣環境中的最大功耗。

Rmin=跳閘前25℃時的最小設備電阻。

Rmax=跳閘前25℃時的最大設備電阻。

R1max=裝置首次跳閘一小時后25℃時的最大裝置電阻。
